pharmacy  or fermentation industry

In pharmacy or fermentation industry,we suggest that you can choose the following sensors:

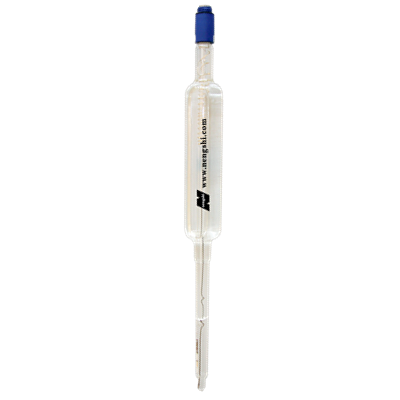

pH sensor

· Direct use with various pH meters as a complete set.

· Plug-in connection; convenient installation and replacement.

· It can be installed with the theread PG13.5.

· Gel sensor. it is unnecessary to fill electrolyte, convenient to use.

· pH range:0-14; zero point: E₀=7pH; Temperature rang: 0-130℃.

· Pressure range：0.6MPa.

·The external dimension of the sensor isΦ12×120,225 mm or other size.

· The outer tube material: glass.

                                                  Selection of model:

                                                  · ASP2321 two in one combination sensor

                                                  · ASP3351 three in one combination sensor,Please note the value of  the thermistor

                                                               when order:Pt100、Pt1000、2.252K、10K、22K etc.

· Direct use with various pH meters as a complete set.

· The sensor has the fixed cable and the length of the cable can be adjusted according to the

  requirements of the users.

· The sensor can not be interferenced by silver ions.

· pH range:0-14; zero point: E₀=7pH; Temperature rang: 0-130℃.

· Pressure range：0.6MPa.

· The external dimension of the sensor isΦ12×120,150 or other size.

· The outer tube material: glass.

                                                  Selection of model:

                                                  · ASP2385C two in one combination sensor

                                                  · ASP3385C three in one combination sensor ,Please note the value of the thermistor

                                                                 when order:Pt100、Pt1000、2.252K、10K、22K etc.

DO sensor

· Plug-in connection; convenient installation and replacement of sensor.

· It can be installed with the thread PG13.5.

· Suitable for the industries such as high pure water, biochemical pharmacy, foods and

  beverage, chemical industry, semi-conductor and so on.

· Measuring range: 0ppm～saturation, 0.1%～200%.

· Temperature rang: 0～130℃.

· pressure range：0.4MPa.

· The external dimension of the sensor isΦ12×120 or other size.

                                                 · The outer tube material: 316L stainless steel.

                                                 · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.

                                                       Selection of model:

                                                  · ASY3851(polarographic)

                                                  · ASYY3851(galvanic)

· It can be installed with the thread PG13.5.

· The sensor has the fixed cable and the length of the cable can be adjusted according to

  the requirements of the user.

· Suitable for the industries such as high pure water, biochemical pharmacy, foods and

  beverage, chemical industry, semi-conductor and so on.

· Measuring range: 0ppm～saturation, 0.1%～200%.

· Temperature rang: 0～130℃.

                                                 · pressure range：0.4MPa.

                                                 · The external dimension of the sensor isΦ12×120 or other size.

                                                 · The outer tube material: 316L stainless steel.

                                                 · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.

                                                  Selection of model:

                                                  · ASY3811(polarographic)

                                                  · ASYY3811(galvanic)
