Metallurgical industry

In metallurgical industry, we suggest that you can choose the following sensors:

· Direct use with various pH meters as a complete set.

· Installation with 3/4NPT pipe thread, with safe and reliable sealing.

· Convenient to installation in form of flow-through or immersion.

· The sensor has the fixed cable and the length of the cable can be adjusted according to the

  requirements of the users.

· pH range:0-14; zero point: E₀=7pH; Temperature rang: 0-110℃.

· pressure range：0.6MPa.

                                                   · The external dimension of the sensor isΦ26×150.

                                                   · The outer tube material: PPS plastic.

                                                   · Sensitive material: Plane sensitive glass membrane, not easily broken.

                                                   Selection of model:

                                                   · ASPSAJH3801 three in one combination sensor ,please note the value of the thermistor

                                                                               when order:Pt100、Pt1000、2.252K、10K、22K etc.

_____________________________________________________________________________________________________________________________

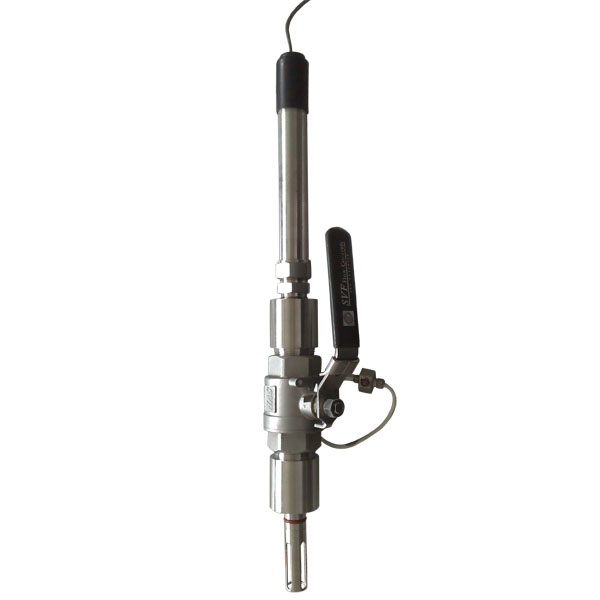

· Direct use with various pH meters as a complete set.

· Installation with 1NPT pipe thread, with safe and reliable sealing.

· Convenient to installation in form of flange or immersion.

· The sensor has the fixed cable and the length of the cable can be adjusted according to the

  requirements of the users.

· pH range:0-14; zero point: E₀=7pH; Temperature rang: 0-110℃.

                                                 · pressure range：0.6MPa.

                                                 · The external dimension of the sensor is Φ25×600mm.

                                                 · The outer tube material: Stainless steel.

                                                 Selection of model:

                                                 · ASPSJH396  three in one combination sensor ,Please note the value of the thermistor

                                                                  when order:Pt100、Pt1000、2.252K、10K、22K 、8550etc.

ORP SENSOR

· It can be directly used together with various redox meters as a complete set.

· Installation with 3/4NPT pipe thread,convenient to installation.

· The sensor has the fixed cable.

· The length of the cable can be adjusted according to the requirements of the users.

· Measuring range:±2000mv.

· Temperature rang: -10-110℃.

· Pressure range：0.6MPa.

· The external dimension of the sensor:Φ26×165.

                                                   · The outer tube material:PPS plastic.

                                                   Selection of model:

                                                   · ASRS2801 combination ORP sensor (Pt ring)
